Geomembrane Welding Machine, Plastic Membrane Hot Wedge Welder with Double Pressure Roller for Sealing HDPE EVA PVC 0.2-2mm Thick Membrane

tunnel welding machine, overlap width, geomembrane, geotextile liner sealant, pe, pvc, eva, wedge welder, plastic layer sealing tool, automatic welding machine, lap geomembrane liner, hot wedge welder kit.specifications:power: 800w/1100wvoltage: 110v/220vfrequency: 50hz/60hzwelding speed: 0.5-5m/minheating temperature: 0-450 degreesoverlap width: 10cmwelding width: 16mm×2, inner cavity 12mm;seam strength: >85% of base material (tensile strength in cutting direction),welding material thickness: rubber wheel 0.2-1.5mm/steel wheel 1-2mminsulation level: class iimachine weight: 5kgpacking list:1 x geomembrane welding machine1 x rubber wheel1 x steel wheel1 x tools and kits1 x aluminum box1 x instruction manualour services:1. we always appreciate all the buyers we always meet and want to provide you with the best product and service.2. offer strict quality control, faster and safer shipping.3. if you have any questions, please feel to contact us. we will actively solve the problems you encounter.

• 【Geomembrane Welding Machine】This welding machine is widely used and can be used to weld various soluble plastic materials, such as PP, PVC, HDPE, ECB, EVA, PE, ABS, etc. Commonly used in anti-seepage applications such as membranes, geotextiles, waterproof panels, drainage panels, composite membranes, etc.
• 【Technical Parameters】Voltage: 110v/220v; Frequency: 50Hz; Power: 800W/1100W; Welding speed: 0.5-5m/min; Heating temperature: 0-450 degrees; Overlap width: 10cm/15cm/20cm; Welding width: 16mm×2, inner cavity 12mm; Seam strength: >85% of base material (tensile strength in cutting direction), Full machine weight: 5kg; Insulation level: Level II.

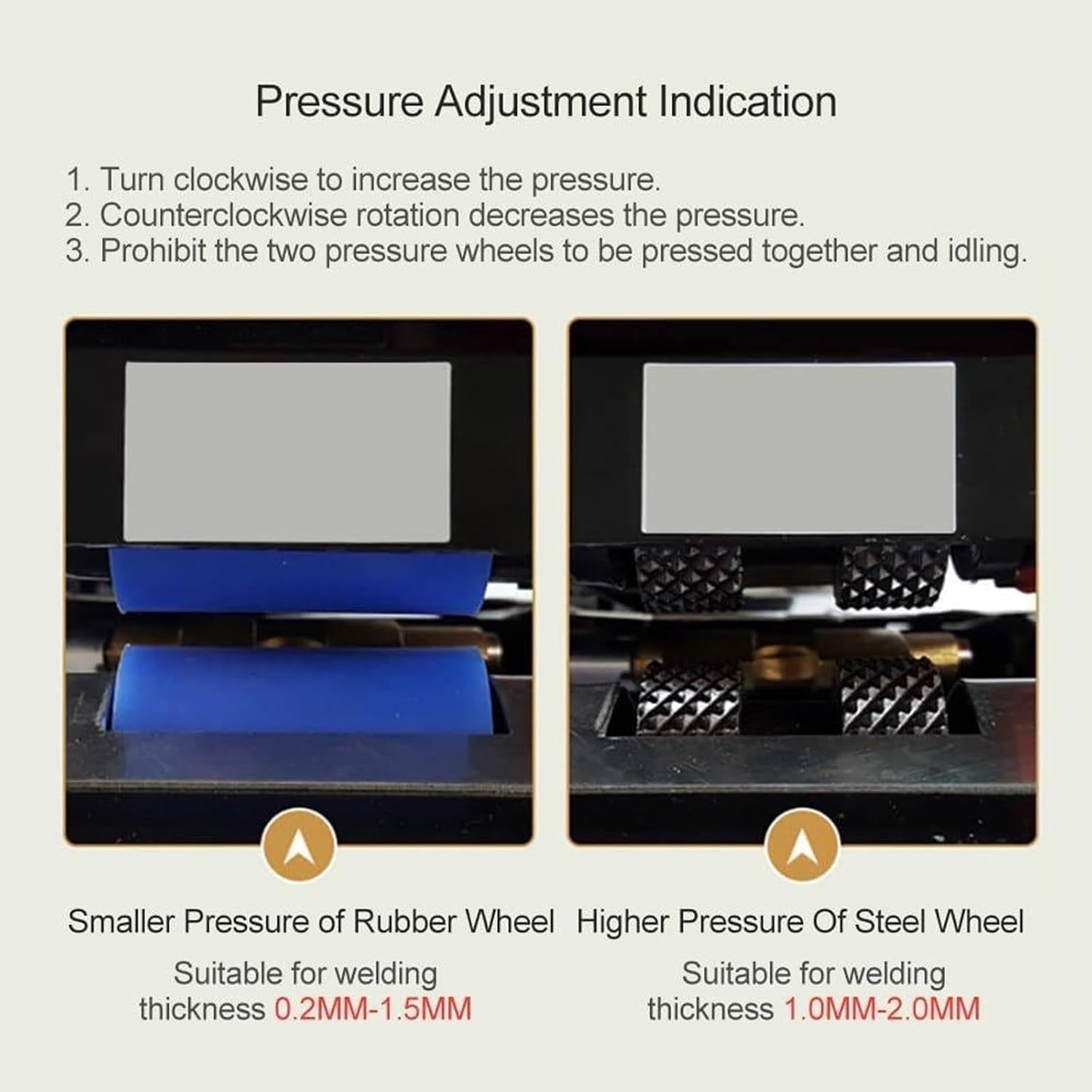

• 【High Quality Double Pressure Wheels】The machine comes with two pressure wheels, which are to high temperatures and have smooth and firm welding results. The pressure can be adjusted according to the thickness of the film. The rubber wheel with lower pressure is suitable for welding thicknesses of 0.2mm to 1.5mm, and the steel wheel with higher pressure is suitable for thicknesses of 1.0mm to 2.0mm.
• 【Working Principle】The motor drives the upper and lower pressure rollers to rotate through the reduction gearbox and chain. The sliding carriage drives the hot wedge and inserts it between the two base materials, at the same time the lever presses the pressure rollers and couples the two fused base materials.welding machines has high power, fast welding speed and good welding quality.
• 【WIDE RANGE OF APPLICATIONS】This welding machine is suitable for various fields such as water conservancy, aquaculture, roof construction, etc. It is suitable for anti-seepage constructions in tunnels, underground structures, embankments, artificial lakes, aquatic plants, landfills, petrochemical facilities, landscaping, roofs, etc.
